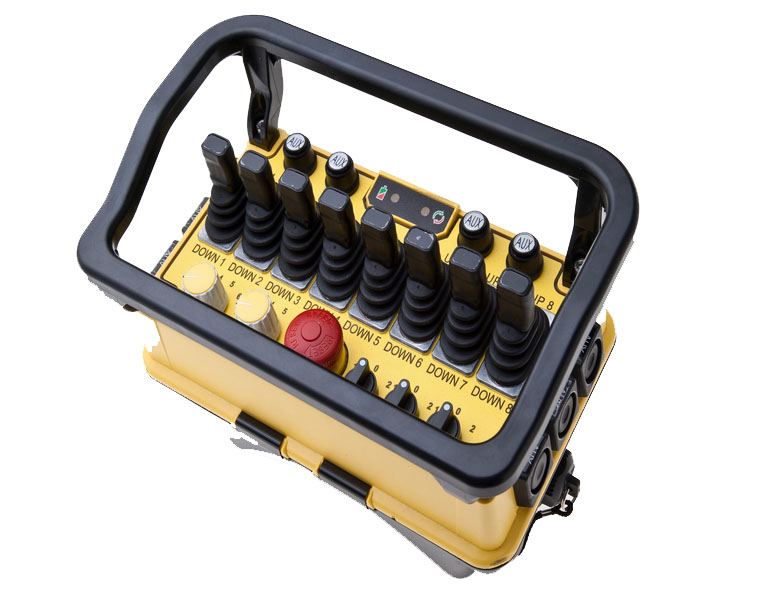

Transmitter
|
|
|
Frequency Range
|
: |
PLL 433 ~ 434 MHz / 447 ~ 448 MHz |
|
Transmitting Range
|
: |
over 100 Meters |
|
Continuous Operating Time
|
: |
24+ Hours (2000mA) |
|
Operating Current
|
: |
approx. 70mA |
|
Sleep Mode Current
|
: |
approx. 10mA |
|
Security ID Code
|
: |
1,048,576 sets (20 bit) |
|
Channel Spacing
|
: |
25KHz / 12.5KHz |
|
Hamming Distance
|
: |
≧ 6 |
|
Frequency Control
|
: |
VTCXO (PLL) |
|
Frequency Drift
|
: |
< 3ppm @ -10℃ ~ 70℃ |
|
Frequency Deviation
|
: |
< 1ppm @ 25℃ |
|
Spurious Emission
|
: |
> 60dBc |
|
Transmitting Power
|
: |
1.0mW |
|
Emission
|
: |
F1D |
|
Antenna Impedance
|
: |
50 ohms |
|
Enclosure Rating
|
: |
IP-65 |
|
Source Voltage
|
: |
7.2 V (2000mA NiMH battery pack) |
|
Current Drain
|
: |
~80mA |
|
Operating Temperature
|
: |
-10℃ ~ +50℃ |
|
Shock Resistant
|
: |
50G |
|
|
|
Receiver
|
|
|
Frequency Range
|
: |
P PLL 433 ~ 434 MHz / 447 ~ 448 MHz |
|
Channel Spacing
|
: |
25KHz / 12.5KHz |
|
Hamming Distance
|
: |
≧ 6 |
|
Frequency Control
|
: |
VTCXO (PLL) |
|
Frequency Drift
|
: |
< 3ppm @ -10℃ ~ 70℃ |
|
Frequency Deviation
|
: |
< 1ppm @ 25℃ |
|
Sensitivity
|
: |
≥ -120dBm |
|
Decoding Reference
|
: |
2FSK |
|
Antenna Impedance
|
: |
50 ohms |
|
Data Decoding Ref.
|
: |
Quartz Crystals |
|
Radiation Leakage
|
: |
< -75dBm |
|
Enclosure Rating
|
: |
IP-65 |
|
Source Voltage
|
: |
100 ~ 240VAC @ 50/60 Hz. (standard) |
|
Power Consumption
|
: |
32W |
|
Operating Temperature
|
: |
-10℃ ~ +60℃ |
|
Shock Resistant
|
: |
40G |
|
Output Contact Rating
|
: |
250V @ 10A |
|
Dimension
|
: |
300mm X 171mm X 115mm |
|
Weight
|
: |
4,500g (include the cable gland) |
|
